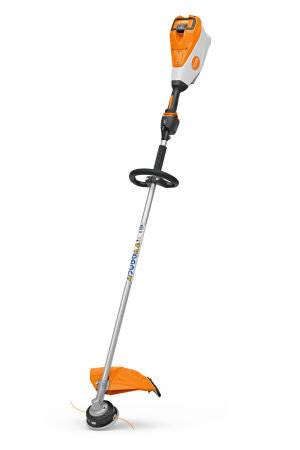

Stihl FSA 120 R Brushcutter - Bare Unit

Stihl FSA 120 R Brushcutter - Bare Unit

MPN: FA082000005

SKU: 7QFA082000005

FSA 120 R Cordless Brushcutter: Excellent mowing performance, ideal for professionals in gardening and landscaping

Battery and smart connector not included.

The STIHL FSA 120 R is a battery-powered brushcutter designed for tackling the toughest gardening and landscaping jobs you may face. The FSA 120 R is battery powered meaning it has low noise emission – making it ideal for work in noise-sensitive areas such as schools, hospitals and quiet neighbourhoods.

Fitted with a new style loop handle that has a quick-mounting system, meaning you can adjust the handle to your height for an ergonomic working position. This handle also makes mowing on slopes, around trees or on uneven terrains even easier. The FSA 120 R has a powerful brushless EC motor and speed-adjustment on the control handle, which can be set at 2 different speed settings. There is an ECO mode (level 1), for simple tasks such as trimming lawn edges, which results in lower energy consumption for extended battery life. And there is full speed mode (level 2), for mowing thicker grass, which will use more of the battery energy.

The FSA 120 R is supplied with a basic harness and the AutoCut 27-2 as standard, but can also be fitted with otherSTIHL cutting tools, such as the TrimCut, DuroCut, PolyCut and GrassCut cutting tools.

For a full list of STIHL battery-powered tool working times, click here.

Don’t forget to check your work area for wildlife before starting to use your tool. In particular, you should check for nesting birds before trimming hedges, as well as checking for other small animals such as hedgehogs before trimming long grass.

Features

The pictures shown are sample photos. The actual appearance of the equipment features and their specific attachment to the product may differ from the pictorial representations, but will have the same functionality.

LOOP HANDLE WITH BAR

FOR SAFE WORK IN SMALL SPACES. The loop handle ensures good manoeuvrability of your tool, even in confined spaces. The bar protects you by ensuring your feet and legs cannot come too close to blades or mowing heads during work.

SOFT GRIP HANDLE WITH ERGO LEVER

Thanks to the soft grip handle, this tool fits comfortably in your hand. Plus, the grip helps to use the tool in wet weather.

EC MOTOR

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.

SHOULDER STRAP / CARRYING SYSTEM

Using a STIHL shoulder strap or carrying harness with soft padding makes work more comfortable, particularly during lengthy jobs.

TOOL MONITORING WITH THE SMART CONNECTOR

INTEGRATION INTO STIHL CONNECTED. The tool is compatible with the Smart Connector, meaning it can be integrated into the STIHL connected system. Once you have attached a Smart Connector to the tool, after one-time commissioning it will record the tool’s operating hours and transmit them to the STIHL connected App via Bluetooth. In addition to displaying the operational time, the app also provides an overview of all necessary maintenance, ensuring that you do not overlook important upkeep and that your tool is always in a ready-to-use condition.

EYELET FOR SHOULDER STRAP

The HLA has a special eyelet for use with a shoulder strap.

POWER LEVELS

PERFORMANCE SUITABLE FOR THE TASK. You can set 2 different power levels on the handle. Level 1, is Eco mode, which has reduced power to extend the battery life. Level 2 allows you to use the full power of the tool.

TOOL-FREE ADJUSTABLE LOOP HANDLE

FLEXIBLE ADJUSTMENT, FLEXIBLE MOWING. The loop handle can be quickly and easily adjusted without any tools so you can adapt the working position to your height. The optimised geometry of the loop handle gives plenty of freedom to manoeuvre and precise guidance of your power tool in different mowing situations.<br />

Technical details

Rated voltage	36 V
Power	0.8 kW 1)
Battery system	AP
Recommended battery	AP 300 S
Device weight without battery	4.3 kg 2)
Cutting circle diameter	380 mm
Standard cutting attachment	AutoCut 27-2 mowing head
IPX Rating	IPX4
Min. battery working time AP 100 with line mowing head	10 min 3)
Max. battery working time AP 100 with line mowing head	15 min 3)
Min. battery working time AP 200 with line mowing head	20 min 3)
Max. battery working time AP 200 with line mowing head	30 min 3)
Min. battery working time AP 200 S with line mowing head	20 min 3)
Max. battery working time AP 200 S with line mowing head	30 min 3)
Min. battery working time AP 300 with line mowing head	25 min 3)
Max. battery working time AP 300 with line mowing head	40 min 3)
Min. battery working time AP 300 S with line mowing head	30 min 3)
Max. battery working time AP 300 S with line mowing head	50 min 3)
Min. battery working time AP 500 S with line mowing head	35 min 3)
Max. battery working time AP 500 S with line mowing head	60 min 3)
Min. battery working time AR 2000 L with line mowing head	130 min 3)
Max. battery working time AR 2000 L with line mowing head	210 min 3)
Min. battery working time AR 3000 L with line mowing head	190 min 3)
Max. battery working time AR 3000 L with line mowing head	320 min 3)
Device length without cutting tool	178 cm
Sound pressure level	81 dB(A) 4)
Sound power level	94 dB(A) 4)
Vibration value on the left in right-handed operation	3.2 m/s² 5)
Vibration value on the left in right-handed operation	5.8 m/s² 5)
Vibration value on the right in right-handed operation	2.8 m/s² 5)
Vibration value on the right in right-handed operation	1.6 m/s² 5)

1) Mechanical power as comparative value to petrol appliance 2) without cutting tool and protection 3) The indicated working times per battery charge are indicative and may vary depending on the application and operating mode 4) K-value according to Directive 2006/42/EC = 2.0 dB(A) 5) K-value according to RL 2006/42/EG = 2 m/s²
