LEICA Rugby 610 Alkaline & Rod Eye 120

MACHINE ONLY

Technical Details

- One button simplicity
Leica Rugby 610 – A one-button, self-levelling horizontal laser (single axis,
manual slope when used with the optional A240 Manual Slope Adapter).

Leica 6011150 Rugby 610 FEATURES:

• Simple One button operation
• Self-leveling, horizontal laser
• General Construction Laser
• Designed for general contractors who mainly perform formwork and concrete applications
• IP67 water and dust protection
• Manual Single Axis Slope Capable with optional A240 Manual Slope Adapter

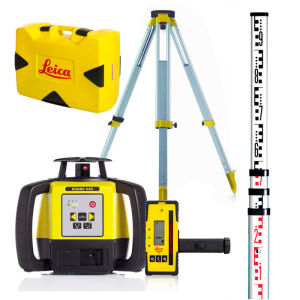

Leica 6011150 Rugby 610 RED Beam Rotary Laser Package INCLUDES

• Leica Rugby 610 Rotary Laser Transmitter (6011150)
• Leica Rod Eye 120 Detector with bracket (789922)
• Alkaline Battery Batteries Holder Included (790419)
• Alkaline Batteries Included
• Leica Hard Carry Case (813922)

Leica Rugby 610 Rotary Laser SPECIFICATIONS:

• Functionality: Self-Leveling, horizontal, One button laser
• Laser Class: Class 1
• Laser Type: 635 nm (Visible Beam)
• Plumb Up: No
• Accuracy: +/- (3/32" at 100 ft)
• Self-leveling Range: +/- 5 degrees
• Rotation: 10 rps
• Scanning: N/A
• Scan90: N/A
• Plumb down: N/A
• Sleep Mode: N/A
• Max Range with the RE120: 2,600 feet diameter
• Operation Time with Li-Ion Battery: 40hrs
• Operation Time with Alkaline Battery: 60hrs
• Working Temperature: -20 to 55 degrees C (-4 to 122 degrees F)
• Protection (with and without battery): IP67
